T-Shirt

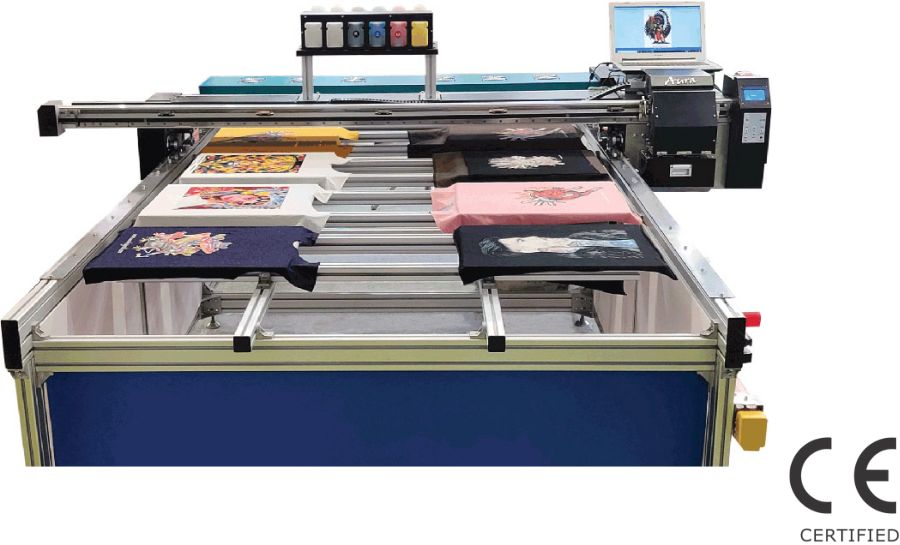

Aura Smart Printing Machine
Main Features:
Print on Light / Dark Garments
Fine Printing | Brilliant Colours
White / Glitter, etc done by Screen Printing. (Digital white optional).
Post-treatment: Heat fixing through tunnel heater / heat curing box.
Production: 80 to 100 T-shirts / hour
EPSON Gold generation print heads.
Standard Printing width 145 cm.
Special models available for Sweaters and Shawls
- Print on Light / Dark Garments
- Fine Printing | Brilliant Colours
- White / Glitter, etc done by Screen Printing. (Digital white optional).
- Post-treatment: Heat fixing through tunnel heater / heat curing box.
- Production: 80 to 100 T-shirts / hour
- EPSON Gold generation print heads.
- Standard Printing width 145 cm.
- Special models available for Sweaters and Shawls
This printer is a perfect solution for printing on T-shirts / Panels with 4/8 color Pigment Inks. It works on white, light, as well as dark base.
In this machine model we have given a feature in which you can make the white base through screen (which combines the format of screen and digital printing; reducing printing cost and making use of white ink possible by screen) or you can print the base digitally in which the white ink passes through the print head and the base is created on top of which the printing is done with pigment inks.
Pre-treatment: To be done through spray (we have special chemical for this). There is different pre-treatment chemicals for White & Dark garments.
Post-treatment: Heat fixing thru tunnel heater or Heat curing box. Most of the printing units will have this and if required we can also supply.
Specifications:
| Models | Aura Smart 4H Without Digital White Ink |
Aura Smart 4W With Digital White Ink |
|---|---|---|
| No of Heads | 2/4 | |
| Head Type | Epson i3200 | |
| Ink Droplet Size | Variable Drop 3 to 21 pl | |
| Productivity A4 Size Full Print | 82-120 T-Shirts | |
| Working Size | 145 cm × 9 Mtr | |
| Flash Heater | Optional (Recommended) | |
| Feed & Take Up | Multiple of 3 Mtr Add on | |
| Media | T-shirts / Fabrics / Garments / etc. | |
| Features | Combination of screen & digital. Printing full table or pallets. Sensor based registration. Adjustable head height. Suitable for high production. | |
| Ink | Pigment | |
| No. of Colors | 4/8 | 4+1 |
| Standard Table Length | 9 Mtr. | 6, 12, 15 or 18 Mtr. |
| Supply Mode | Continuous Ink Supply System | |
| Operating System | Windows 10 / 11 | |
| RIP Software | Neostampa | |
| Data Interface | Hi-USB 2.0 / 3.0 Mbps | |
| Power | A/C 220 V 50/60 Hz | |
| Environment | Temperature: 15° to 25°C Humidity: 55 to 65% | |
| Dimension (Machine) | 2750 × 600 × 1200 mm (6 Mtr.) | |
| Weight (Machine) | 380 kg | |
| Dimension (Packing) | 3150 × 500 × 630 mm | 2860 × 630 × 720 mm |
| Weight (Packing) | 280 kg | 220 kg |
